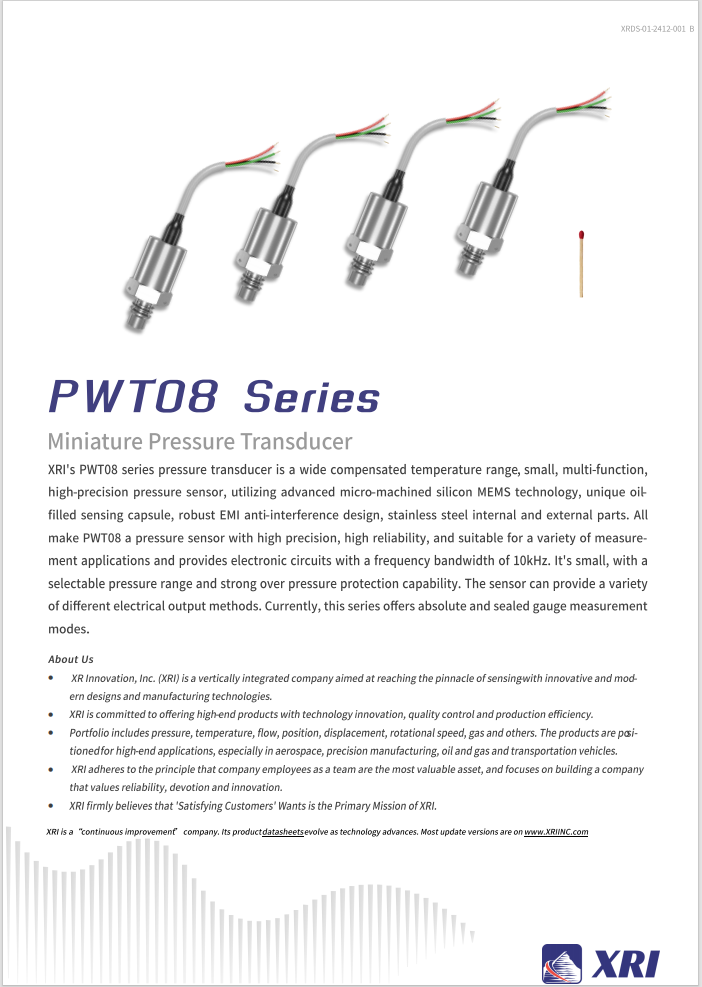

XRI's PWT08 series pressure transducer is a wide compensated temperature range, small, multi-function, high-precision pressure sensor, utilizing advanced micro-machined silicon MEMS technology, unique oilfilled sensing capsule, robust EMl anti-interference design, stainless steel internal and external parts. All make PWT08 a pressure sensor with high precision, high reliability, and suitable for a variety of measure-ment applications and provides electronic circuits with a frequency bandwidth of 10kHz. lt's small, with a selectable pressure range and strong over pressure protection capability. The sensor can provide a variety of different electrical output methods. Currently, this series offers absolute and sealed gauge measurement modes.
