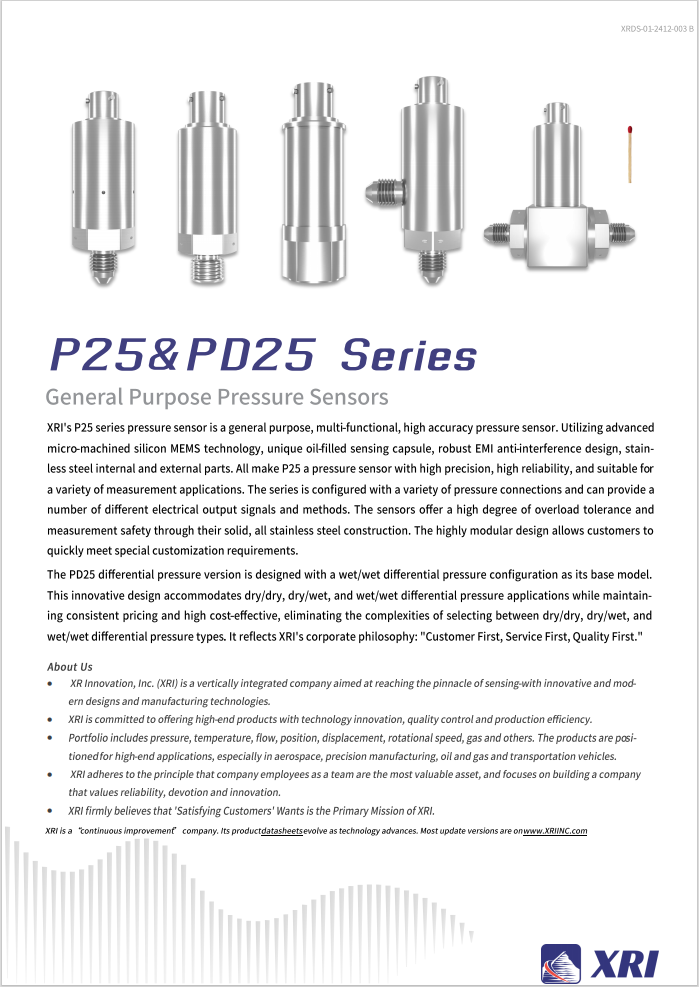

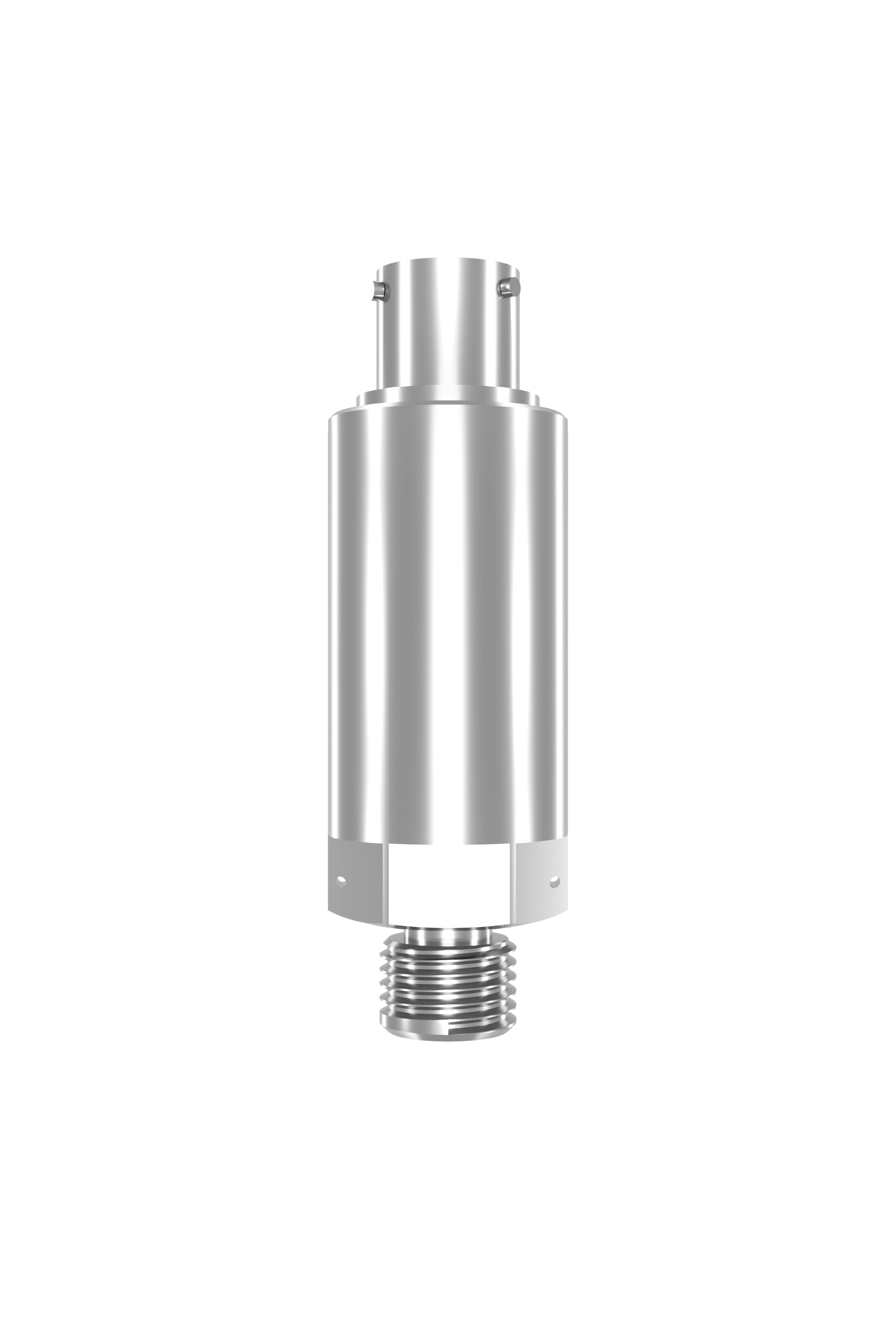

XRl's P25 series pressure sensor is a general purpose, multi-functional, high accuracy pressure sensor. Utilizing advanced micro-machined silicon MEMS technology, unique oil-filled sensing capsule, robust EMl anti-interference design, stainless steel internal and external parts. All make P25 a pressure sensor with high precision, high reliability, and suitable fora variety of measurement applications. The series is configured with a variety of pressure connections and can provide anumber of different electrical output signals and methods. The sensors offer a high degree of overload tolerance and measurement safety through their solid, all stainless steel construction. The highly modular design allows customers toquickly meet special customization requirements.

The PD25 differential pressure version is designed with a wet/wet differential pressure configuration as its base model. This innovative design accommodates dry/dry, dry/wet, and wet/wet differential pressure applications while maintain-ing consistent pricing and high cost-effective, eliminating the complexities of selecting between dry/dry, dry/wet, andwet/wet diferential pressure types. lt reflects XRl's corporate philosophy: "Customer First, Service First, Quality First."
